Stable Diffusion, SDXL U-Net Architecture 살펴보기

먼저 stable diffusion

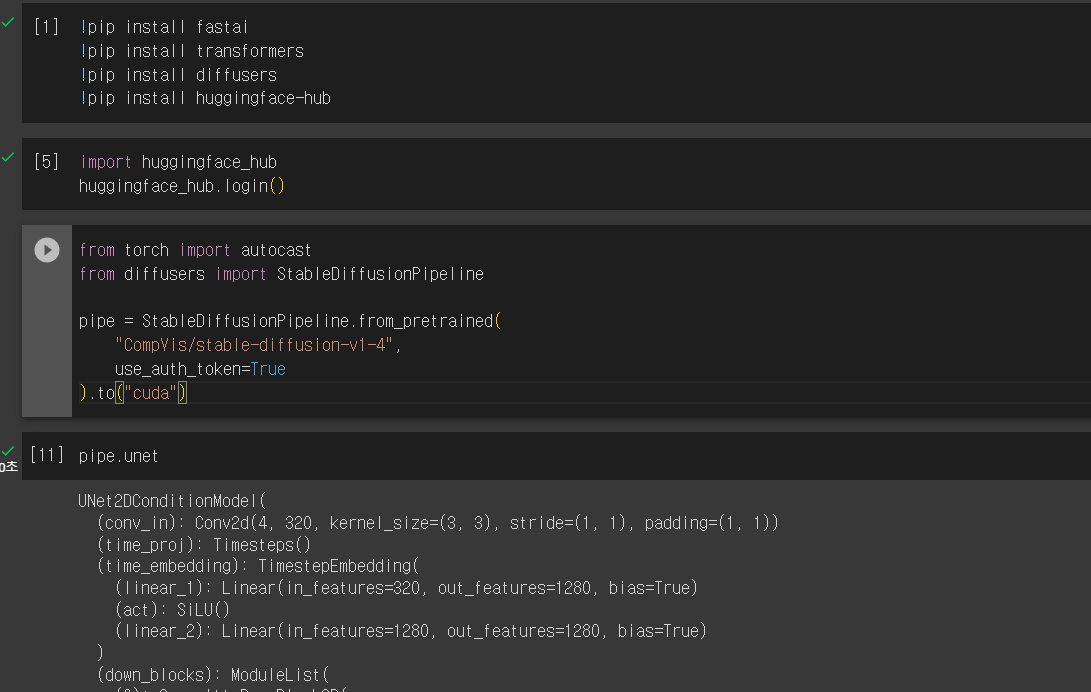

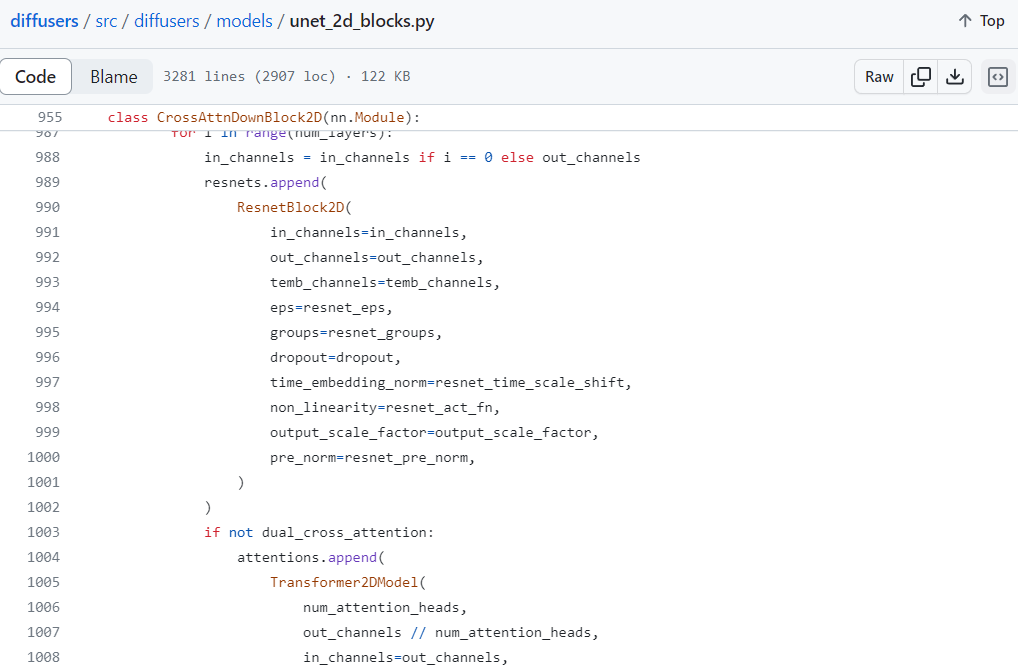

하위 모듈들의 순서가 제대로 나와있지 않아서 직접 찾아봄.





conv_in



down_blocks:

    (CrossAttnDownBlock2D:

        ResnetBlock2D

        Transformer2DModel

        ResnetBlock2D

        Transformer2DModel

        Downsample2D

    ) x 3

    DownBlock2D:

        (ResnetBlock2D) x 2



mid_blocks:

        ResnetBlock2D

        Transformer2DModel

        ResnetBlock2D



up_blocks:

    UpBlock2D:

       (ResnetBlock2D) x 3

        Upsample2D

    (CrossAttnUpBlock2D:

        (ResnetBlock2D

        Transformer2DModel) x 3

        Upsample2D) x 2

    CrossAttnUpBlock2D:

        (ResnetBlock2D

        Transformer2DModel) x 3



out

---

Stable Diffusion XL-v1.0



conv_in



down_blocks:

    DownBlock2D:

        (ResnetBlock2D) x 2

        Downsample2D

    CrossAttnDownBlock2D:

        (ResnetBlock2D

        Transformer2DModel (BasicTransformerBlock x 2) ) x 2

        Downsample2D

    CrossAttnDownBlock2D:

        (ResnetBlock2D

        Transformer2DModel (BasicTransformerBlock x 10) ) x 2



mid_blocks:

        ResnetBlock2D

        Transformer2DModel

        ResnetBlock2D



up_blocks:

    CrossAttnUpBlock2D:

        (ResnetBlock2D

        Transformer2DModel (BasicTransformerBlock x 10) ) x 3

        Upsample2D

    CrossAttnUpBlock2D:

        (ResnetBlock2D

        Transformer2DModel (BasicTransformerBlock x 2) ) x 3

        Upsample2D

    UpBlock2D:

       (ResnetBlock2D) x 3



out



Original Stable diffusion과의 차이점:

• 최고 해상도의 transformer block 제거
• 최저 해상도(8x8) 제거
• SD에서는 모든 Transformer2DModel에 각각 1개의 BasicTransformerBlock을 사용했지만, SDXL에서는 구성이 달라졌다.
